Technical Data

Model	DEC 530 K	DEC 600 K
A (mm)	1540	1560
B (mm)	5300	6000
C (mm)	900	920
D (mm)	5200	5900
E (mm)	4000	4500
Dimensions Diagram	View	View
Weight (kg)	1100	1200
Hydraulic System	DEC 530 K	DEC 600 K
Oil Tank Capacity (lt/min)	200	200
Hydraulic Oil (type)	ISO-L-HM 68	ISO-L-HM 68
Head	DEC 530 K	DEC 600 K
G-Working Width (mm)	1000-1300	1000-1300
Weight (kg)	180-210	180-210
Rotor Speed (rpm)	2800	2800
Rotor Power (hp)	57	57
Tractor	DEC 530 K	DEC 600 K
Min Power Requirements (hp)	90	110
Min Weight (kg)	3500	4000
PTO Speed (rpm)	540	540

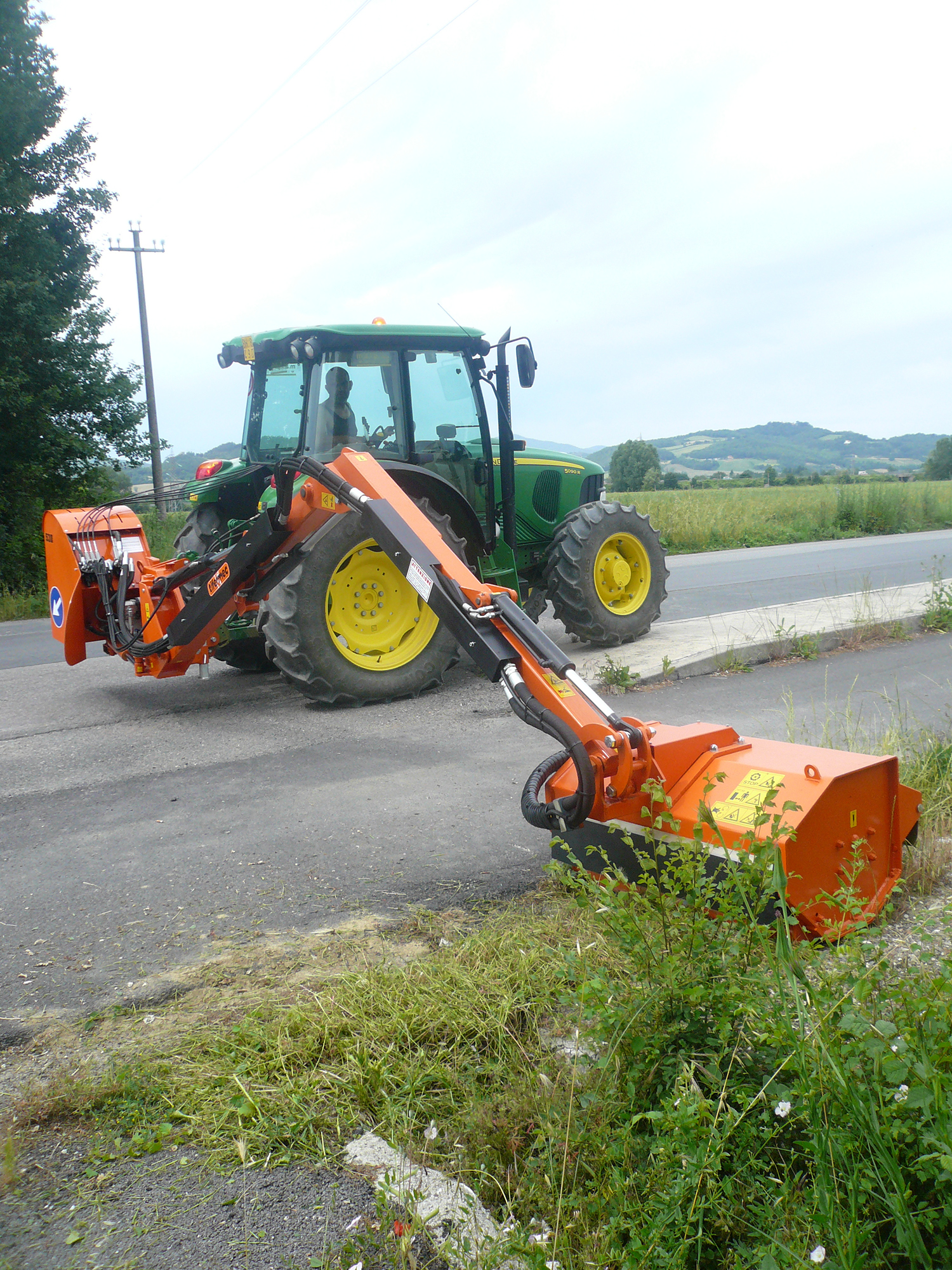

Flail Hedge Mower Arm Motion

Data/Model	DEC 530 K	DEC 600 K
Arm Motion
A (mm)	1540	1560
B (mm)	5300	6000
C (mm)	900	920
D (mm)	5200	5900
E (mm)	4000	4500
Dimensions Diagram (click to view)	View	View
Weight (kg)	1100	1200
Hydraulic System
Oil Tank Capacity (ltr)	200	200
Hydraulic Oil (type)	ISO - L - HM 68	ISO - L - HM 68
Head
G-Working Width (mm)	1000 - 1300	1000 - 1300
Weight (kg)	180 - 210	180 - 210
Rotor Speed (rpm)	2800	2800
Rotor Power (hp)	57	57
Tractor
Min Power Requirements (hp)	90	110
Min Weight (kg)	3500	4000
PTO speed (rpm)	540

Features & Options

Piston Motor

Support Stretchers

Electric Control Joystick

Heat Exchanger

Tractor Stabilisers – P.T.O Drive Shafts

Distributor With Reversal Prevention Lever

Floating Ground Self Levelling System

Cast-Iron Engine

Two-Way Head Operation
